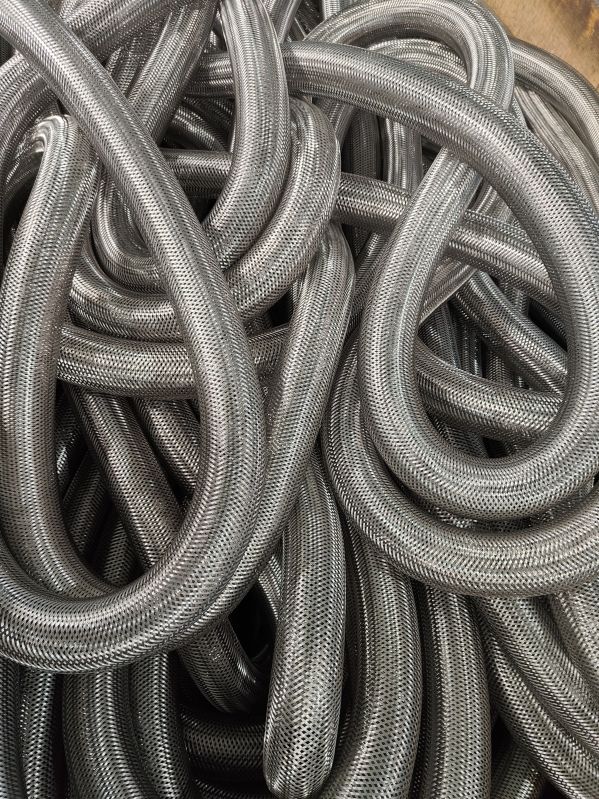

Stainless Steel Lightweight Braided Hose

Lightweight braided:

A lightweight braided metallic shielding is applied to wiring harnesses to protect against lightning strikes and electromagnetic interference (EMI). The braided shielding has an open braid construction which may be as much as 40% lighter in weight and which provides better electromagnetic shielding than conventional braided shielding. The decrease in weight is achieved by utilizing a braid carrier application angle, as measured from the axis of the wire harness, which is as small as about eighteen degrees, so as to produce a braided shield that has as few as four picks per inch. The ensuing braided shield is very flexible and results in a degree of wire harness coverage which may be as low as about 60 %, but which exhibits low electrical resistance which contributes significantly to lightning protection and EMI shielding.

LIGHTWEIGHT BRAIDED SHIELDING FOR WIRING HARNESSES

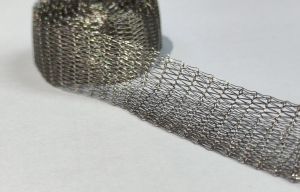

TECHNICAL FIELD This invention relates to braided shielding for a wire harness, which braided shielding is flexible and lightweight. More particularly this invention relates to a braided wire harness shield which has an open weave configuration and provides protection against electrical transients resulting from lightning strikes, and provides protection against electromagnetic interference (EMI). The braid exhibits lower (better) surface transfer impedance than conventional braided shielding for frequencies below 50 MHz. Surface transfer is an intrinsic parameter of a shield that corresponds directly to shielding effectiveness and lightning protection capability. Tubular braids construction and flat braids  constructions is as follows:
